MAIN FEATURE
Hardwired, 24VAC power supply
Up to 3H/2C, Gas/Electric/Heat Pump/Fossil Fuel/Conventional system
3.5” TFT color display, 480*320 resolution
LoraWAN, 915mHZ
Capacitive touch
With humidity sensor (+/- 3%)
With ambient light sensor
Programmable mode, 5/2 , 7days , 24hours
Four or six events per day
Frost protection
Filter reminder
Manual or auto changeover
Adjustable heating and cooling set point limits
Automatically adjusts to daylight saving time
C/F temperature display
External sensor(10k 25°C @3950)
Modbus RS485 communication(Option)
Touch screen lockout
Night light option

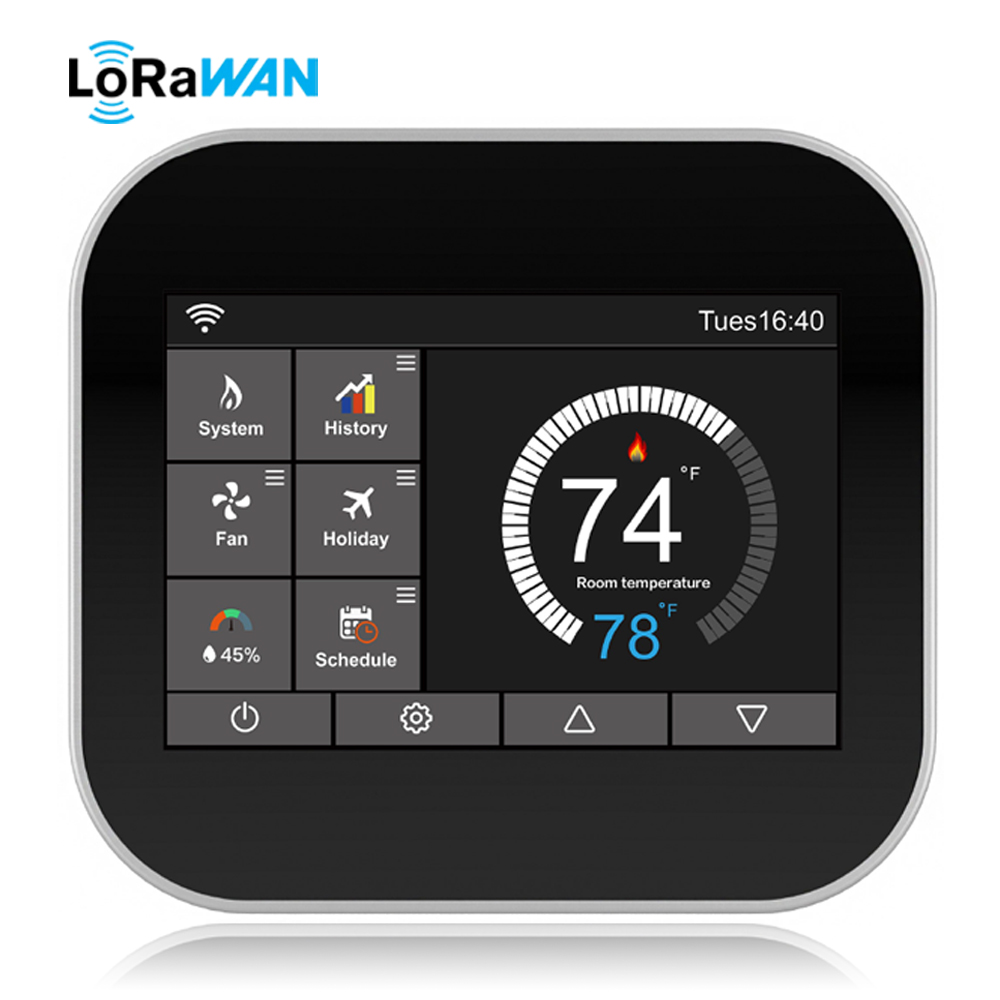

GZAIR MC6 LoRaWAN thermostat is a smart thermostat that uses LoRaWAN technology to communicate with a central server or cloud platform. It allows users to control and monitor their heating and cooling systems remotely, via a mobile app or web interface.
LoRaWAN stands for Long Range Wide Area Network and is a low-power, low-bandwidth wireless communication protocol designed for IoT applications that require long range and low data rates. It uses license-free frequency bands to communicate between devices and gateways, allowing for communication over several kilometers.

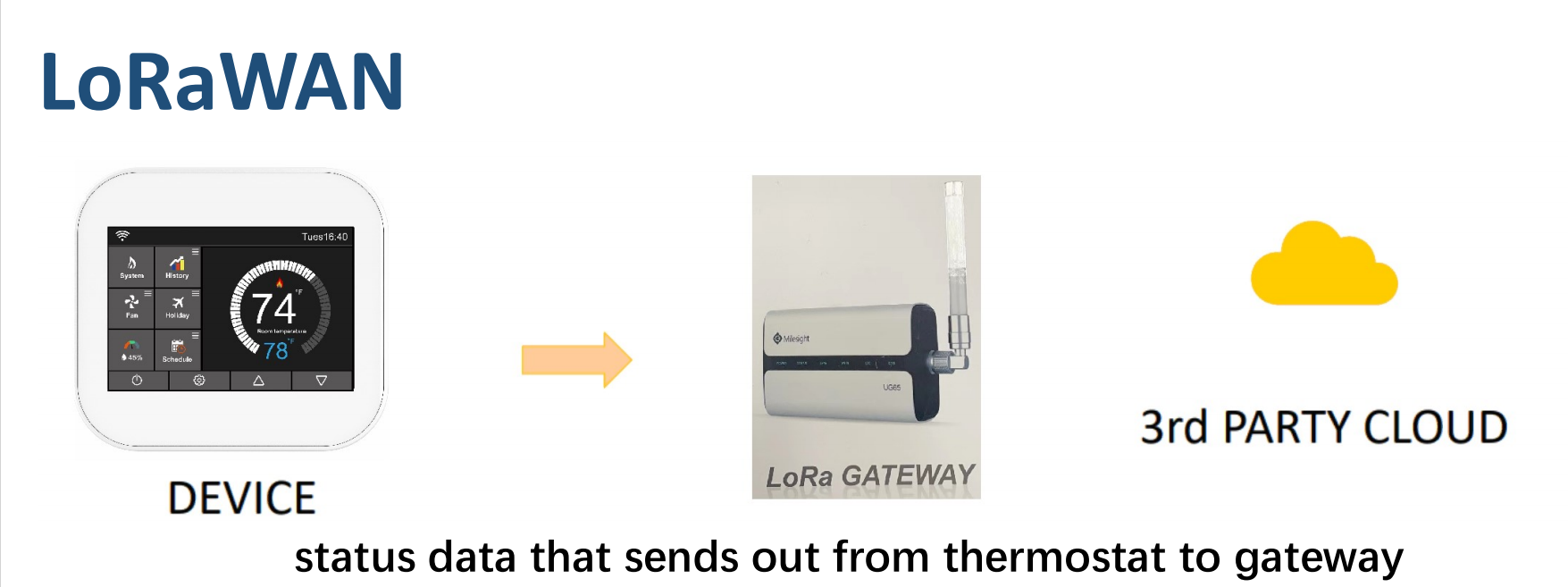

This LoRaWAN thermostat can be installed in a home or building and communicates with a LoRaWAN gateway, which relays the data to a central server or cloud platform. The server can then process the data and provide users with real-time updates on the status of their heating and cooling systems. Users can adjust the temperature settings, monitor energy usage, and receive alerts when issues arise, allowing them to take immediate action.
GZAIR MC6 LoRaWAN thermostats ensure that the heating is only in operation when it is really needed. This leads to considerable savings in heating costs, especially due to the night setback directly at the radiator and the switch-off at the weekend.
Specifications
Purpose Of Control: 2/4 pipes Fan coil AC system, AC + electric heating, Underfloor heating, Electric heating
Supply Voltage: 24vac, 230 vac 50/60 hz
Relay Rating: 230VAC @16 Amp maximum per relay
Output Relay: SPST – NO
Display: 320×480 pixels TFT, Capacitive touchscreen
Operating temperature: 1° C- 85° C
LoraWAN: 868/915mHZ, Class C
Communications: Modbus RTU (Option)
Displayed temperature resolution: 0.1°C
Wire size, terminals: Current ≤ 5 a – 1.5 mm2, solid core wire
Smart schedule type: 7days,weekday/weekend,24hours
Schedule: Up to seven different 4- or 6-event program
Floor limit range: 5°C/60°C
Standby consumption: ≤0.5 W
Dimensions (w/h/d): 96 * 86 * 32.5 (mm)
Weight: ≤200 g
Enclosure rating: IP 21
Product material: PC + ABS plastic
Warranty: 3 years
